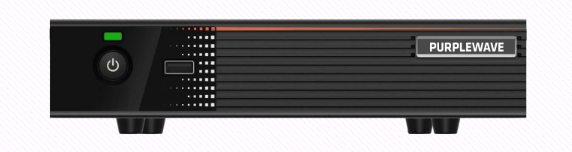

LED Controller PWD339MINI

Ready to use Active LED Panel with Superior Quality

The PURPLEWAVE PWD339MINI is a playback control processor specially designed by PURPLEWAVE INDIA PVT.LTD. for indoor LED screens. It integrates the Android system and sending card functions into oneunit, and allows third-party apps to run on it, featuring powerful interaction and playback control capabilities.

Inputs and Outputs

• 3x HDMI 1.3 inputs
• 3x USB 2.0 inputs for multimedia playback and function extension
• 6x Ethernet outputs, capacity up to 3.9 million pixels
• 2x audio outputs
• 1x SPDIF digital audio output

System Functions

• Android 11 based desktop UI system, supporting third-party apps
• Wireless screen mirroring from multiple platforms

Model No.	PWD339MINI
Status LED	Solid green: The device is running normally. Off: The device is not running.
Standby button	Press the button to power on the device or put it on standby. Hold down the button to restart the device.
USB 2.0	Support a mouse, keyboard, USB drive and other common USB devices. Supported image formats: *.jpg, *.bmp, *.png, *.gif, *.webp Supported video formats: *.avi, *.mpg, *.vob, *.mov, *.mkv, *.mp4, *.ts, *.flv, *.3gp, *.asf, *.webm Support FAT32 and NTFS file systems. Do not support exFAT or FAT16 file system.
Input	HDMI IN 1–2 3× HDMI 1.3 (Type A) Max resolution: 2048×1152@60Hz Min resolution: 800×600@60Hz Custom resolutions supported Width range: 800–3840 pixels (Forced) Height range: 600–3840 pixels (Forced) Supported frame rates: 30 Hz, 50 Hz, 60 Hz Do NOT support interlaced signal input. HDCP 1.4 compliant, backwards compatible.
	USB 2.0 1–2 2× USB 2.0 to support a mouse, keyboard, USB drive and other common USB devices. Supported image formats: *.jpg, *.bmp, *.png, *.gif, *.webp Supported video formats: *.avi, *.mpg, *.vob, *.mov, *.mkv, *.mp4, *.ts, *.flv, *.3gp, *.asf, *.webm Supported file systems: FAT32, NTFS; not supported: exFAT, FAT16.
Output	6× RJ45 (1Gbps)
	HDMI OUT Support output of standard 1080p video.
	AUDIO 3.5-mm audio output.
	SPDIF For digital fiber optic audio output.
Mandatory Certifications	India BIS ISO 14001, 9001, CEE FCC
